NAVIGATOR

Technical specifications

Tank, litres	3000	4000	5000	6000

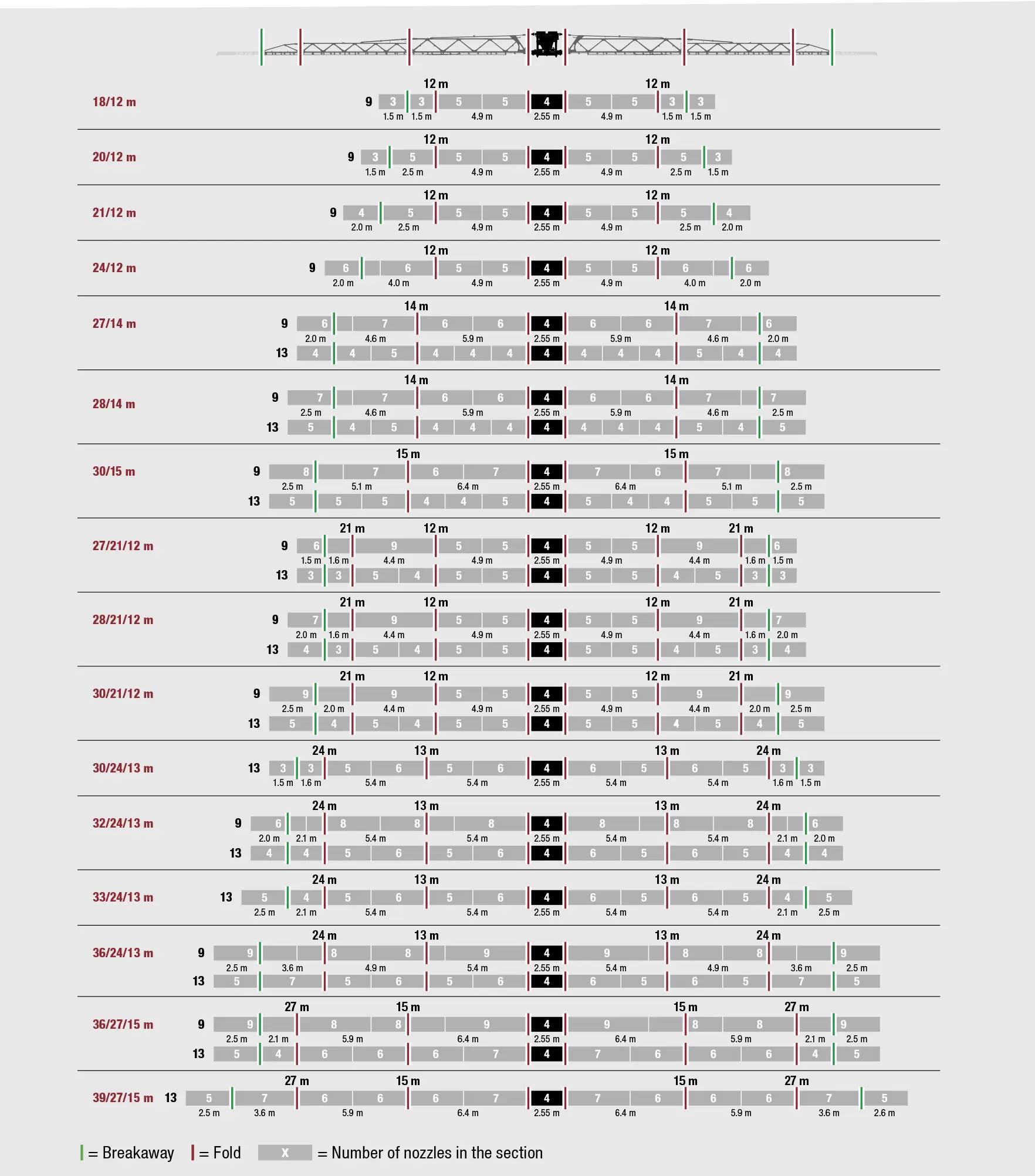

Booms, (m)	DELTA FORCE 20-30 m (2-folded) DELTA FORCE 27-36 m (3-folded) VPZ 20-24 m	DELTA FORCE 20-30 m (2-folded) DELTA FORCE 27-36 m (3-folded) VPZ 20-24 m	DELTA FORCE 24-39 m	DELTA FORCE 24-39 m
Pumps, type – (l/min)	464-280 / 464H-334	464-280 / 464H-334	464-280 / 464H-334	464-280 / 464H-334
RinseTank (l)	500	500	500	500
Total height, (m) *A	3.50	3.50	3.80	3.80
Total length, (m) B	7.20	7.20	8.00	8.00
Length draw to axel, (m) C	5.30	5.30	6.05	6.05
Turning radius IntelliTrack, (m)	6.00	6.00	8.50	8.50
Track width, (m) *D	1.50-2.25	1.50-2.25	1.80-2.25	1.80-2.25
Width DELTA FORCE, (m) *E	-	2.55	2.55	2.55
Width VPZ, (m) *E	2.30	2.30	-	-
Clearance, (m) *F	0.80	0.80	0.81	0.81
Weight total (empty tank), kg	3300-4600	3400-4700	4950-5850	5000-5900

*) NAVIGATOR 30/40 with 340/85R48 tyres
*) NAVIGATOR 50/60 with 520/85R42 tyres

Standard key features		NAVIGATOR	TITANIUM line	CENTURA line
Tank size	3000 l – small chassis	√	√	√
	4000 l – small chassis	√	√	√
	5000 l – large chassis	√	√	√
	6000 l – large chassis	√	√	√
Boom fluid	EFC operating unit	√	√	√
	EFC & BoomPrime	+	+	X
	PrimeFlow incl. AutoNozzleControl	X	+	√
	PrimeFlow	X	+	√
	AutoNozzleControl	X	+	√
	ActiveAir	X	+	√
	PulseSystem	X	X	+
Boom management system	ActiveSlant	+	+	√
	AutoTerrain	+	+	+
Drawbar steering	IntelliTrack	+	+	√
Adjustable axle	154 to 200 cm – small chassis	√	√	√
	180 to 225 cm – large chassis (optional for small chassis)	√	√	√
Brake system	Hydraulic 1-line brake incl. parking 25 km/h	√	+	+
	2-line pneumatic brake incl. parking 40 km/h – EU road homologated	X	√	√
	2-line hydraulic brake incl. parking 40 km/h – EU road homologated	X	+	+
Axle suspension	No suspension	√	X	X
	SmoothRide suspension – standard with EU road homologation	+	√	√
Mudguards	3 different mudguard sizes – standard with EU road homologation	+	√	√
Road safety kit	Road safety kit – EU road homologation	√	√	√
Fluid system	Manual SmartValves	√	√	X
	Dilutionkit remote rinsing	+	+	X
	Intelligent Fluid system Fluidbox 7000 incl. AutoWash, AutoAgitation and AutoFill	X	+	√
	FastFiller	√	√	√
	PressureEmpty	+	+	√
Lights and protection	Night spraying lights	+	+	√
	Underbelly protection	+	+	√
Electronic platform	SmartCom ISOBUS	√	√	√
	Grip	+	+	√
	Grip & SetBox	+	+	+

* √ Included X Not Included + Optional
