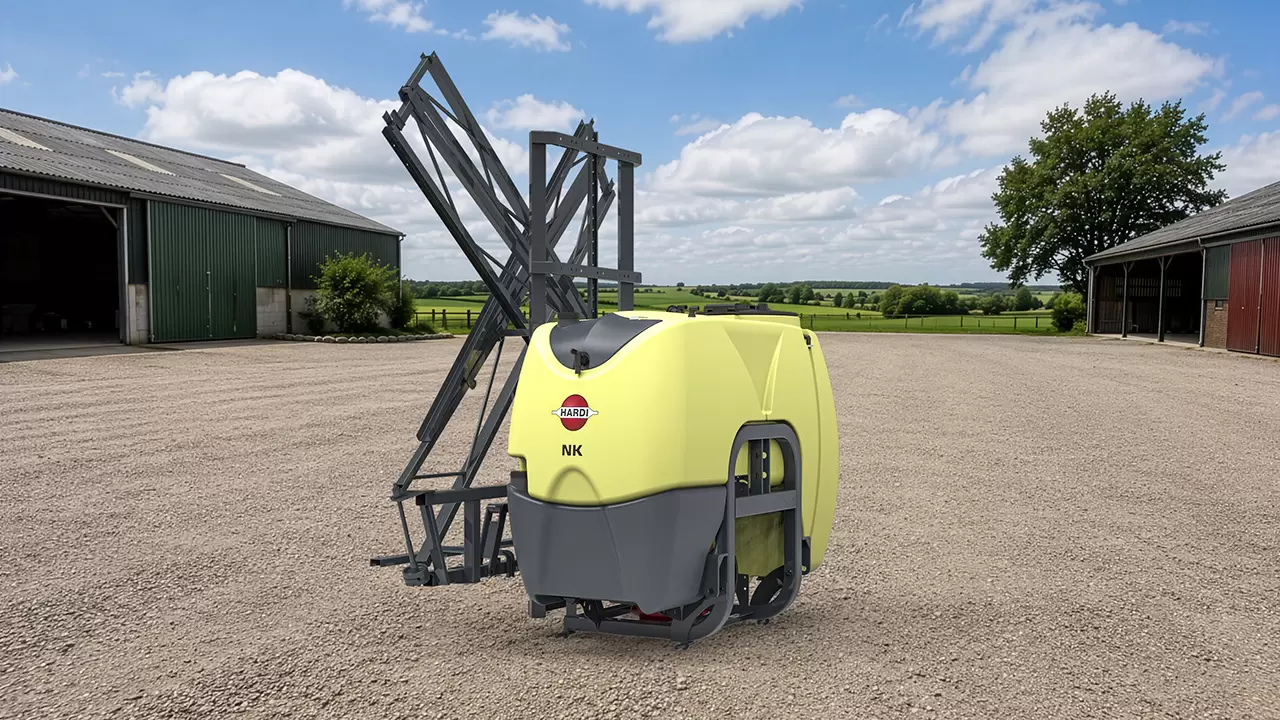

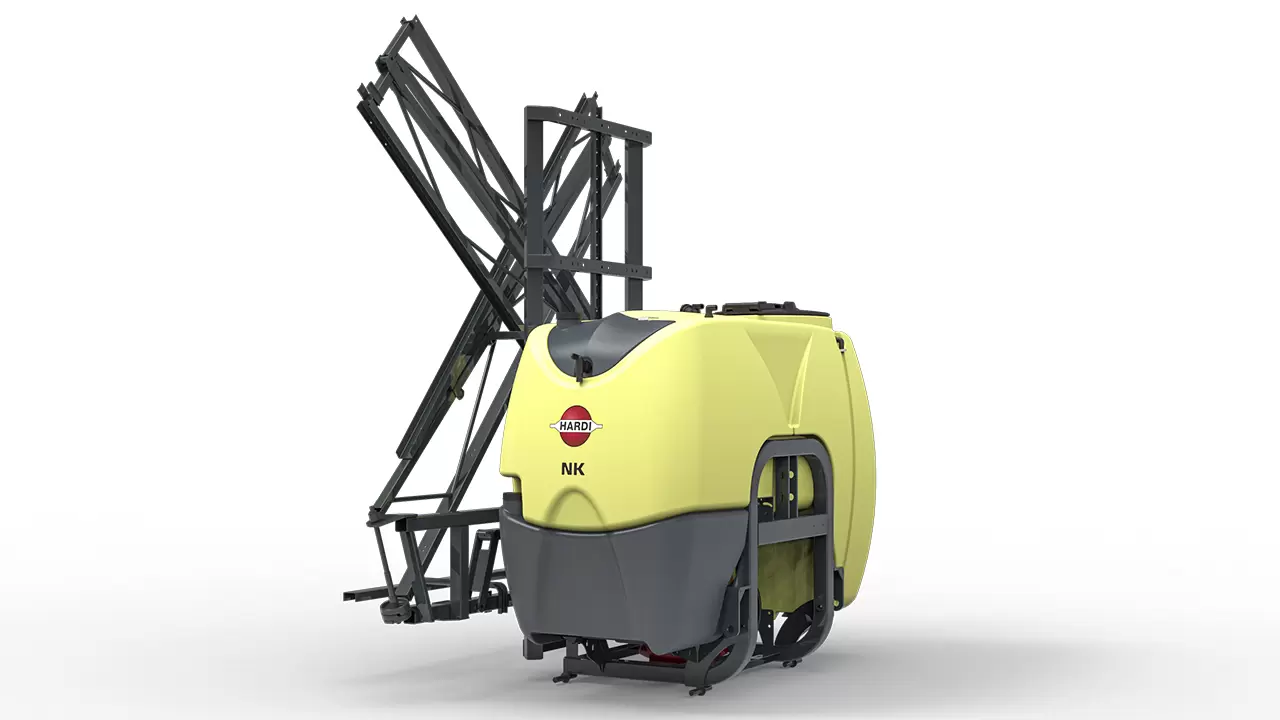

NK – Mounted sprayer from HARDI

NK

Proven simplicity, more capacity

One of the most versatile sprayers ever built

The NK is for growers who want HARDI quality without complexity. The new generation keeps what made it dependable – a powder coated chassis with a low centre of gravity close to the tractor, and a diaphragm pump you can service yourself.

What is new is capacity: a tank up to 1.000 litres, a pump with
flow to spare, and boom section control that finally moves into
the cab.

2-year warranty

Invest with confidence. Every NK sprayer is backed by a 2-year warranty, giving you added peace of mind from day one. To maintain your warranty, your machine must be commissioned, registered and maintained in accordance with the HARDI Operator’s Manual and service guidelines, using genuine HARDI parts.

Warranty coverage is subject to HARDI’s applicable warranty
terms and conditions.

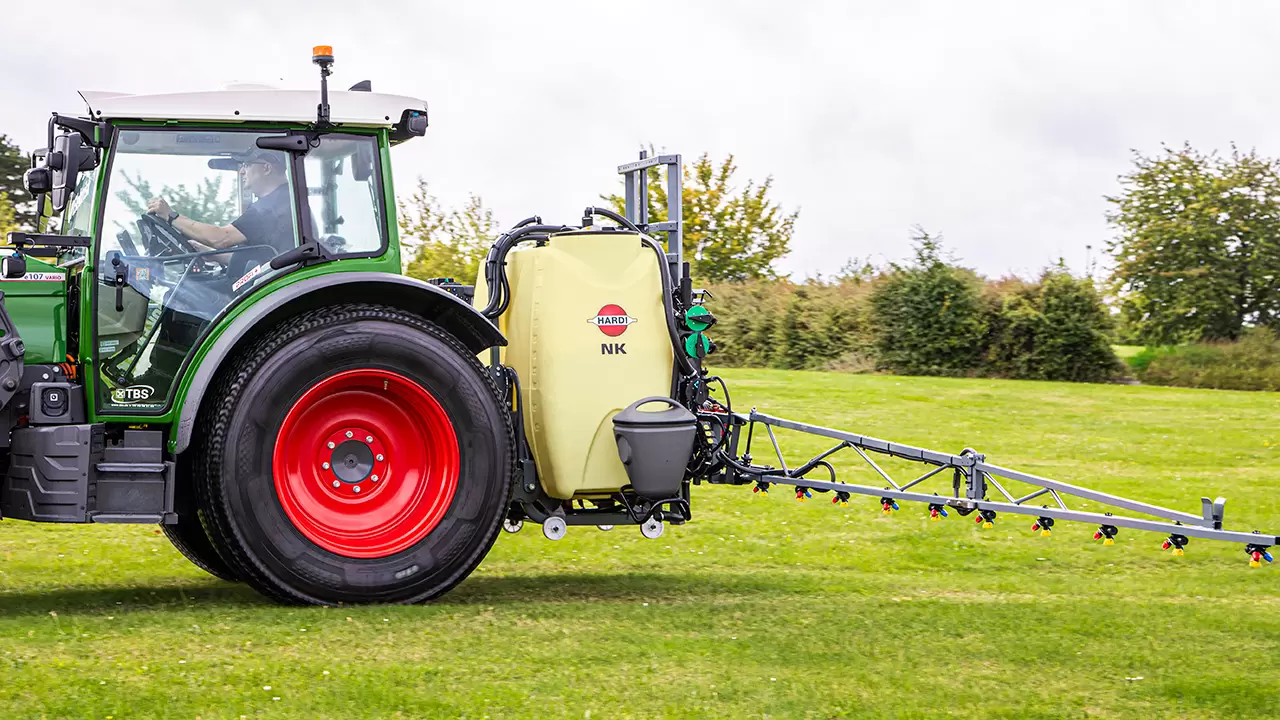

Up to 1,000 litres

The top of the range grows from 800 to 1.000 litres – a quarter more per fill, and a quarter fewer trips back to the filling point. 600 and 800 l stay for growers who need the weight off the linkage.

High-impact polyethylene, deep sump for complete emptying
Rinse tank standard: 72 / 110 l
Pressure agitation for difficult mixtures

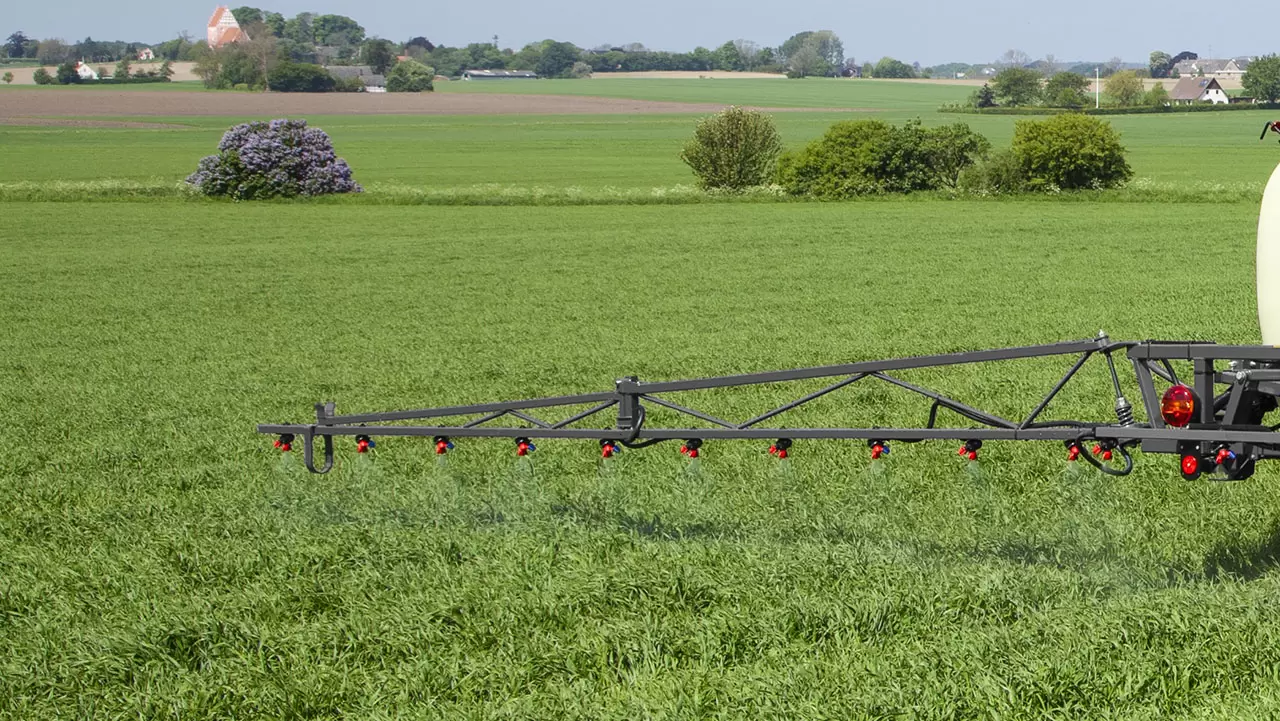

MB boom - Simple and easy

The simple, popular and manually folded MB boom is coated with polyester powder – the identical process the chassis gets. It is mounted directly to chassis keeps the weight close to the tractor and the geometry simple or with the optional hydraulic lift/H-frame.

Working widths: 10 or 12 metres
Polyester powder coated
Optional hydraulic lift/H-frame.

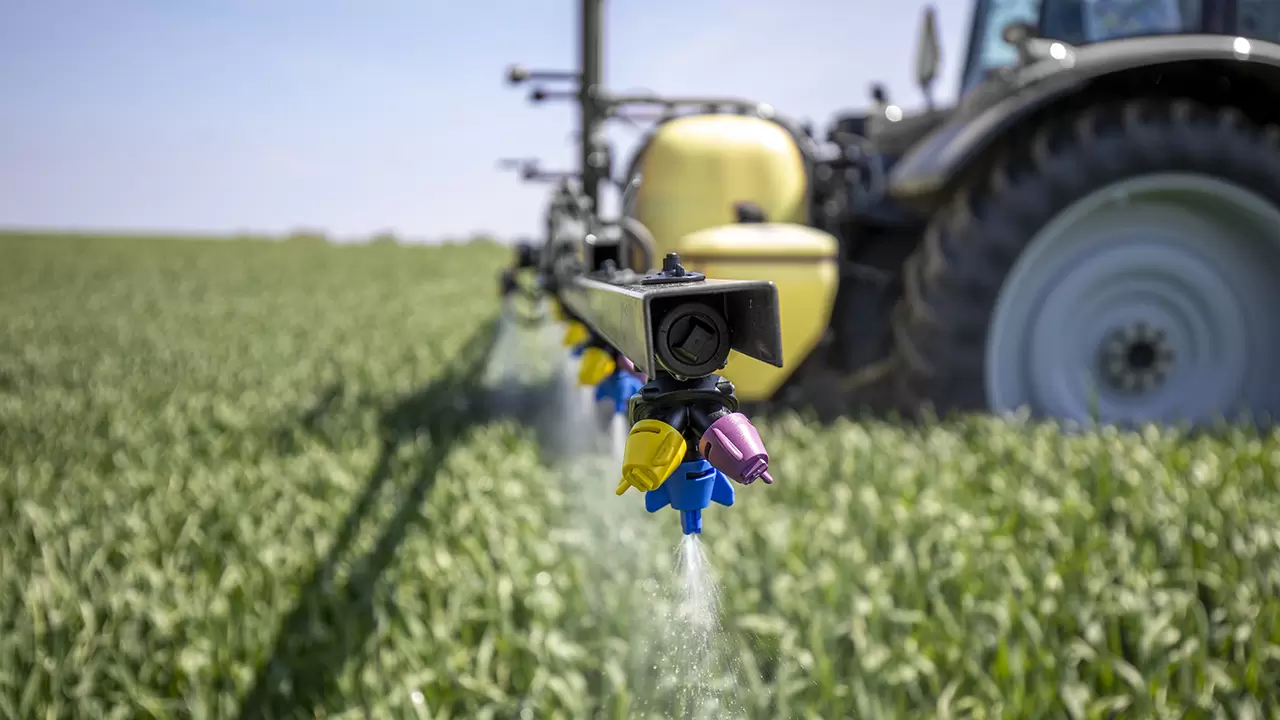

The full HARDI nozzle programme

Hydraulic boom lift is available for height adjustment from the tractor cab. If the NK sprayer will be used in crops with are higher than 50 cm a lift must be ordered to fulfill the EU regulations.

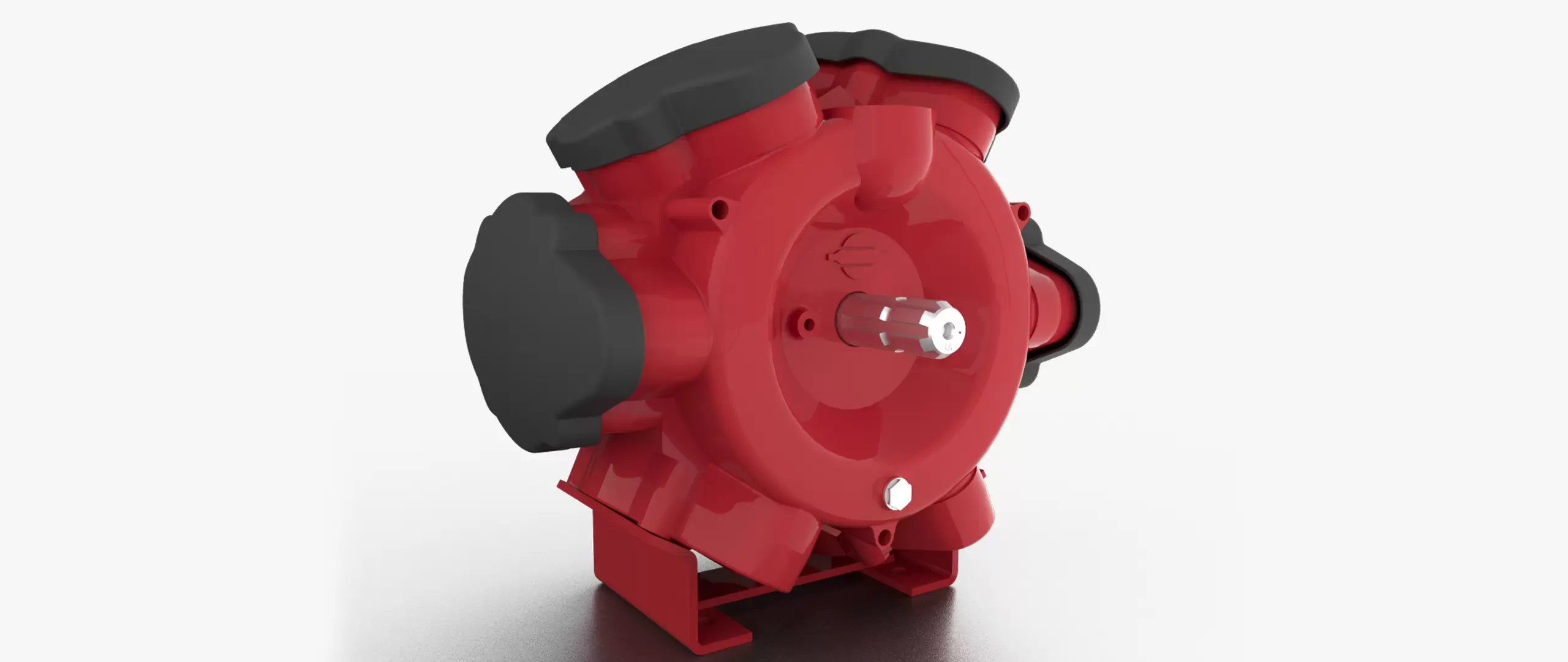

HARDI 364 pump at 140 l/min

At the heart of the NK is the robust and easy-toservice pump for which HARDI is renowned. HARDI was the first to use diaphragms to separate the liquid from bearings, the crankshaft, and other vital pump parts, allowing the pump to run dry without damage.
