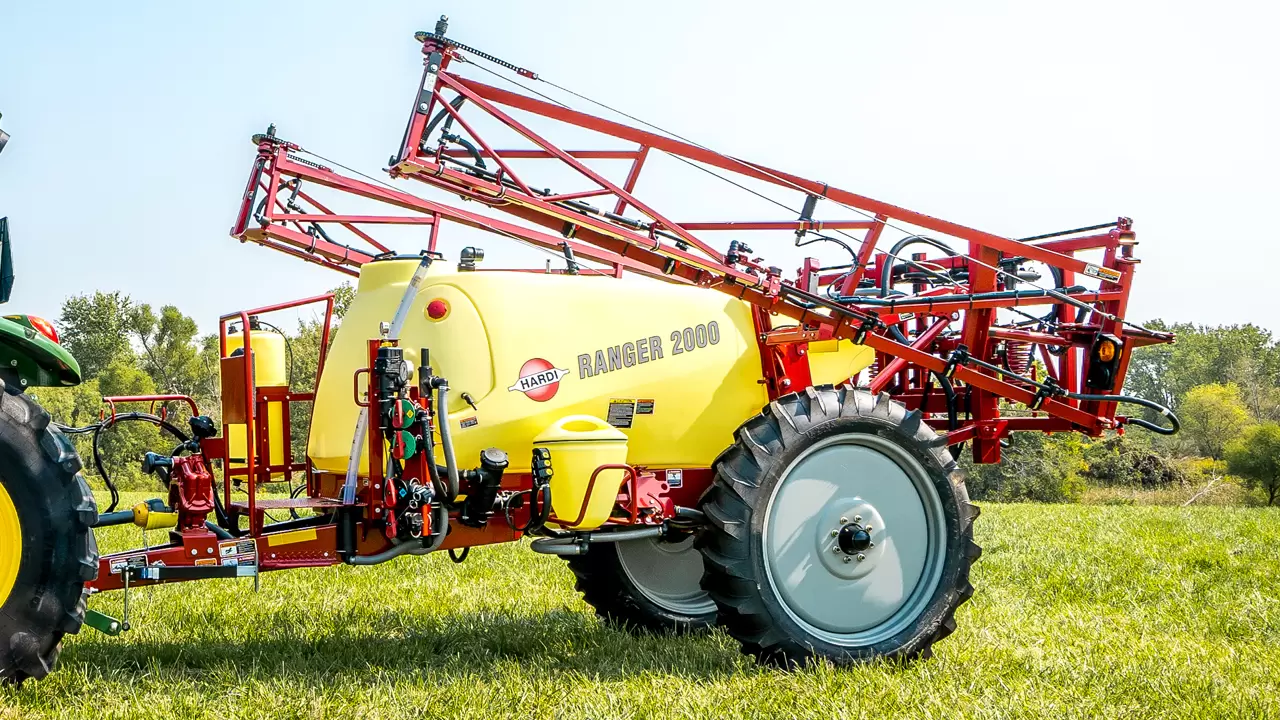

RANGER - Leading in features

Being the smallest in the large HARDI trailer range, the kinship does not fail. The RANGER is designed to meet the request for a simple and reliable trailer. This goal is reached and proven by successful worldwide sales since its introduction in 2006. At the same time RANGER is leading in its class offering a big range of different features.

Booms based on toughly different concepts ensure the right boom for the specific need. Intelligent tank and frame design ensure stability and strength. Unique components guarantee the best performance and ultimate durability.

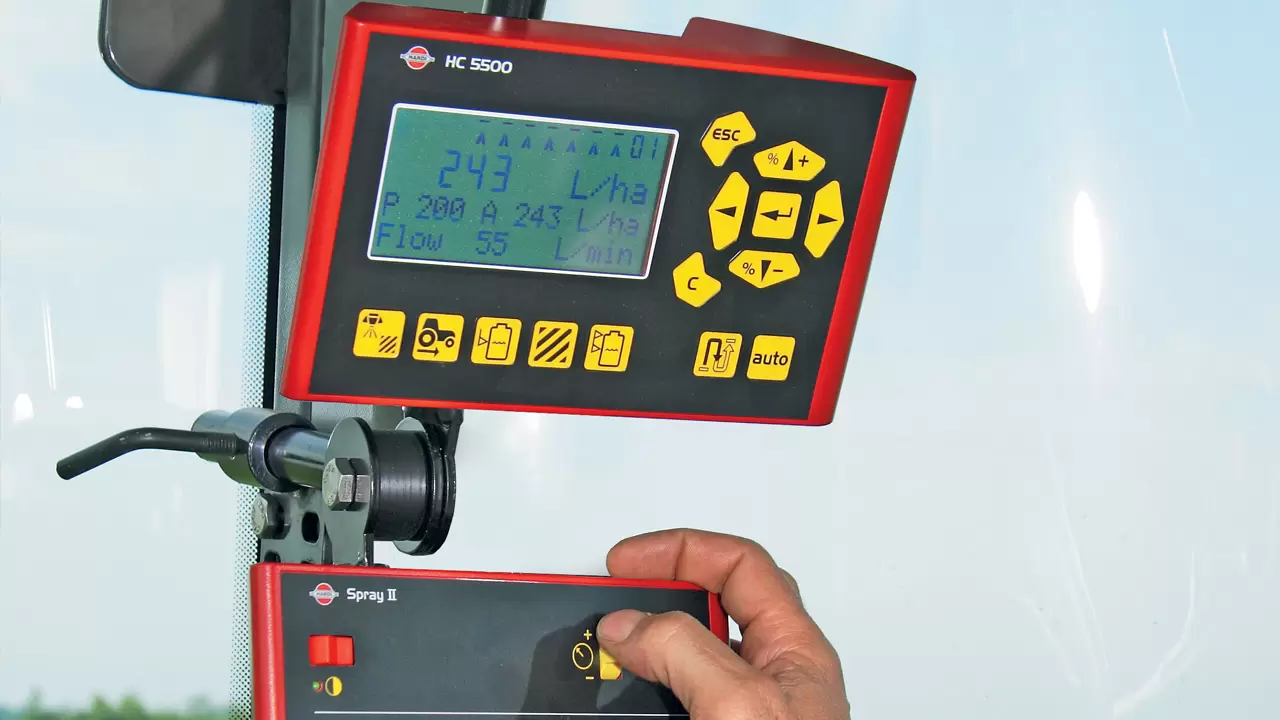

HC 5500 Controller

The HC 5500 is a powerful computer making the spray features easier and safer to use and easily supplies more information when needed. It is the obvious choice where features like IntelliTrack and advanced farming tools are desired. The operator is instantly informed of the operation status and warned if vital parameters like pressure, speed, etc. are incorrect.

It is advanced farming, ready with up to 98 register and connection possibilities to a site-specific application map or a remote sensor. Various optional extras like SprayRover, TankGauge or 12-V printer are available.

EAGLE 45 - 66 ft. booms

EAGLE booms feature a rugged two-dimensional structure and a coil spring self-stabilizing trapeze boom suspension. This combination provides for many years of trouble-free use even in the toughest field conditions.

A non-directional spring-loaded break-away system protects the boom from damage. EAGLE boom is the solution if robustness and high driving speed are required.

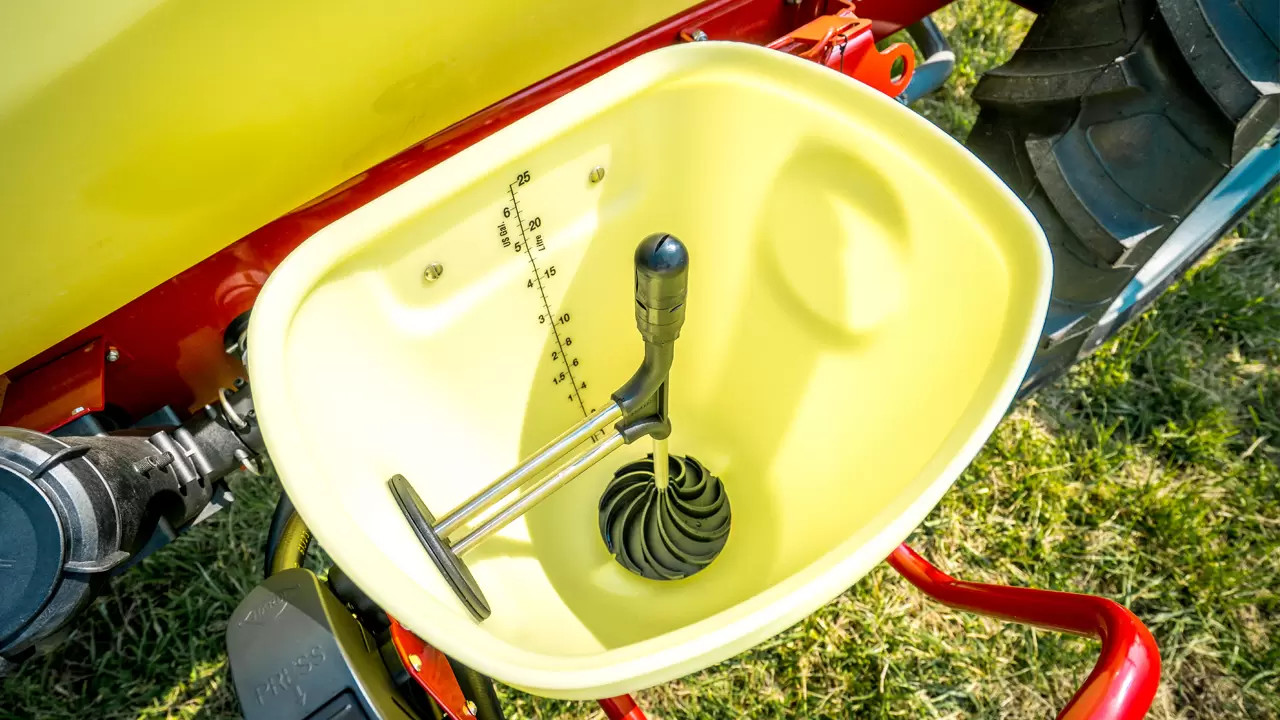

TurboFiller is a high capacity induction hopper which makes the filling of chemicals fast and easy. The unique TurboDeflector creates a powerful liquid circulation in the hopper and mixes all types of chemicals quickly and safely

HARDI RANGER SPECIFICATIONS

Tank: 550 gal. designed for optimal stability and the lowest residue.  Sturdy 3/8" thick main tank.

2" Nurse Tank QuickFill with suction filter (optional on the Model 550)

Cyclone self-cleaning filter (Optional on RANGER 550)

Pump: The HARDI Diaphragm pump is a reliable, high capacity and easy to service with bottom suction from deep sump and is standard on the Ranger 2000.  Options for the Ranger 550 are the Ace 206 hydraulic centrifugal or the Ace 150 PTO belt drive centrifugal pump.

Top Operated tank drain

High Visibility dry sight gauge (Model 550 equipped with a wet sight gauge)

Work platform w/foot step

Controller: HC 5500 (Optional on RANGER 550 & 2000)

5-gallon clean water dispenser

EAGLE booms: Simple and strong booms with hydraulic lift and fold.  Single 20" spaced nozzle bodies w/ISO Mini Drift (Air Inclusion) nozzles
