AS1250XP SPRAYER

Legendary Row Crop Visibility and Optimum Flexibility. Power, performance and value - that is what you can expect from Apache Sprayers.

The Apache  AS1250XP is the biggest sprayers in the AS family, but they are remarkably lighter in weight. The XP model features added horsepower to take on the most challenging conditions there are.

The Apache AS sprayers easy access front entry and extra wide see-through catwalk provide maximum row crop and tire visibility all from the comfort of the AS1250XP cab. The 120” fixed axle width is standard, but for those who need some flexibility, we have that too. Adjustable axle width from 120”–160” is an available option for multiple crop operations.

Download Brochure
Apache AS 1250

APPLICATION CONTROL

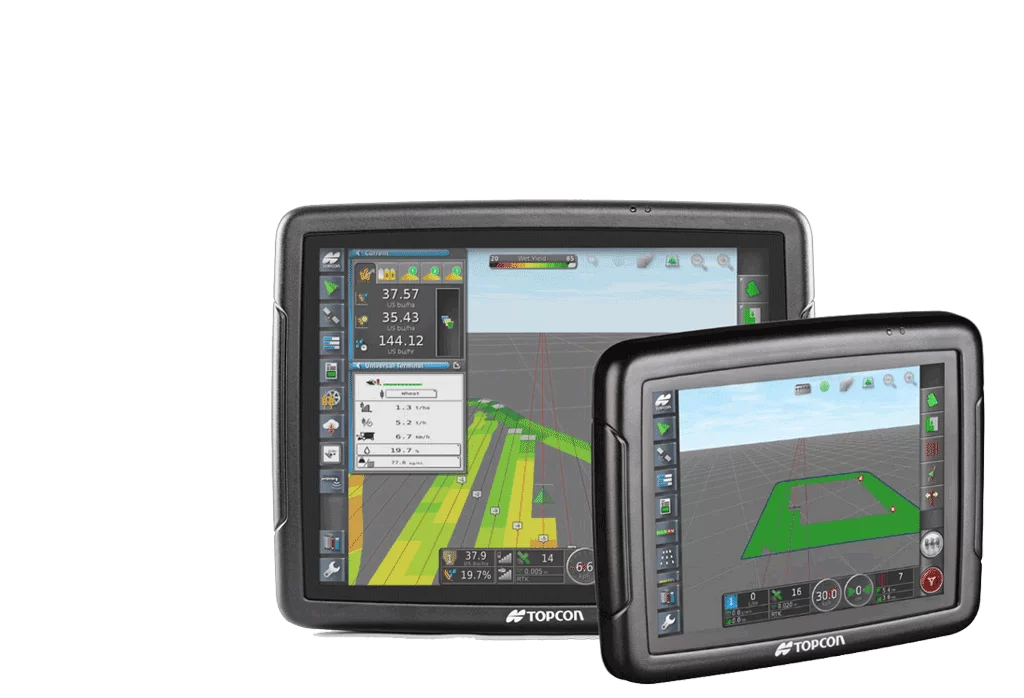

TOPCON X25 / X35

The X35 and X25 terminal integrates all important information on one screen to give you a complete overview of a spray job. The 12.1" multicolour HD touch screen allows for 2D and 3D as well as split screen viewing.

The X35 touchscreen console is an all-in-on solution designed for the most demanding and cutting-edge operations. As the premier console of the Topcon X-family lineup, the X35 boasts industry leading controls, it offers easy-to-learn, easy to use and easy-to-upgrade functionality as needs grow.

  • All-in-one system
  • Universal machine compatibility
  • Easy-to-learn and easy to use system
  • Feature unlocks - grows as needs grow
  • Remote support and calibration



Topcon X35/X25

ADDITIONAL INFORMATION

LOCK IN THE SAVINGS!

Buy an AS 1250XP to lock in the savings! The time is right to invest in an Apache self-propelled sprayer. For more information and a FREE sales quote, click here or email us at [email protected].


Where to go from here?

AS 1250XP SPECIFICATIONS

Tank Capacity: 4500L

Boom: 24-36M Pommier Aluminium

Axle Width: 3M fixed or 3-4M Hydraulic Adjustments

Turning Radius: 6M

Wheel Base: 4.6M

Front Tyres (Standard): Michelin 380/80R38

Rear Tyres (Standard): Michelin 380/90R46

Crop Clearance: 1.27M

Rinse Tank: 380L

Rated Horsepower: 275HP

Driveline Efficiency: 90%

Fuel Tank Capacity: 340L

Suspension: Patented Independent Hydraulic

Brakes: Fully enclosed, self-adjusting, internal wet disc brakes

Transmission: ZF Power Shift 6 Speed

Engine: Cummins B6.7 Performance Series 260HP and 300HP (rated)

Steering: Two Wheel

Product Pump: ACE 650 Hypro hydraulic driven centrifugal

Transportation Width and Height: 3.65M

Overall Length: 7.4M

CAB: ET Custom Pressurised with state-of-the-art interior
