Experience unmatched precision farming

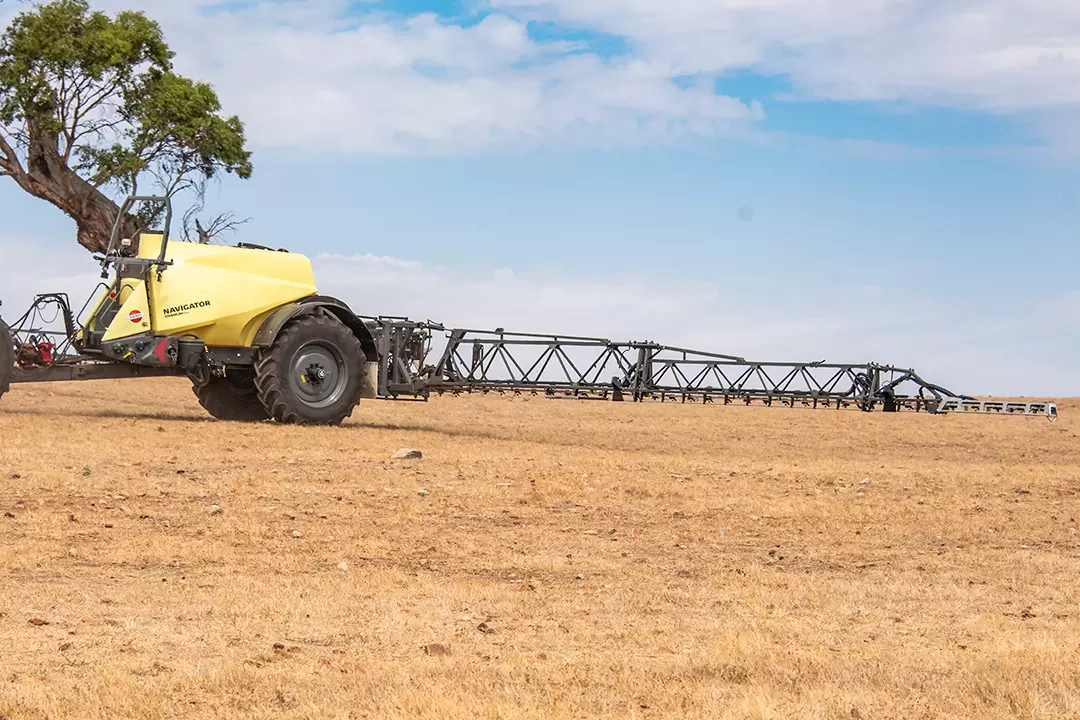

The HARDI NAVIGATOR is one of the most advanced sprayers in its class, designed to boost productivity while optimising resource use. Featuring the latest technology, it helps farmers achieve precise spraying with minimal waste, meeting the demands of modern farming.
With tank sizes of 4000, 5000, and 6000 l, the NAVIGATOR is
equipped to handle various conditions. Its intuitive design, including the WorkZone simplifies tasks like filling, agitation, and cleaning, all while maintaining a low centre of gravity for excellent stability.
Outstanding boom control for accurate application

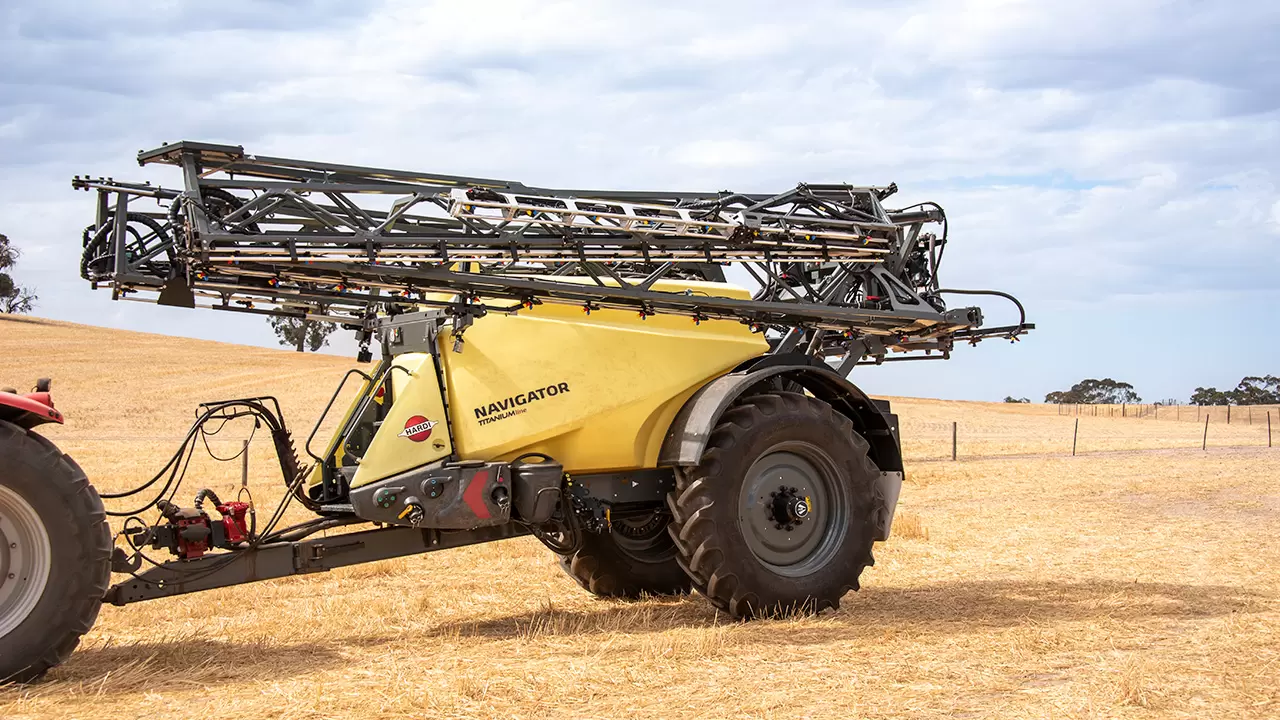

The NAVIGATOR offers outstanding boom control for accurate application. The DELTA FORCE boom, available in widths from 24-36 m, provides exceptional stability with the help of AutoHeight, which ensures consistent spray coverage across different terrains.
DELTA FORCE features:
- Designed with future farming requirements in mind
- High-tensile steel and fishtail welding
- Mechanical locking of boom segments
- SoftOpen/SoftClose technology with end-of-stroke damping
- Nozzles protected for lower boom height and better drift control
- Best-in-class boom stability with AutoHeight (optional extra)
- Precise application with hydraulic AntiYaw damping
Fast and reliable liquid system
NAVIGATOR’s fluid system, DynamicFluid4, employs advanced fluid dynamics and application rate control to deliver fast response and accurate target rate application.
Pressure, flow, pump speed, forward speed, boom sections, and
application rate are all monitored and processed using advanced
computations. The DynamicFluid4 processor analyses the spraying data 20 times per second, providing the boom with pre-emptive rate control capability, altering the flow with pinpoint precision. The liquid system can be operated from the cabin or the ground.
HARDI diaphragm pump
At the heart of the NAVIGATOR is the robust and easy-to-service
pump for which HARDI is renowned. The invention of this pump formed the foundation upon which HARDI was established more than 60 years ago. HARDI was the first to use diaphragms to separate the liquid from bearings, the crankshaft, and other vital pump parts, allowing the pump to run dry without damage.
Large-dimension filters
- The HARDI EasyClean filter is a high-capacity suction filter.
- The HARDI CycloneFilter is a unique, self-cleaning pressureMfilter, providing high efficiency without limiting flow.
